Adjustment plugs (562)
To be combined with adjustment screws (series 620 to 627). Rectangle plugs made of black polyamide PA-6 and inserted steel zinc-plated nut DIN 934 (the plug body can be opened and the nut removed). Stainless steel nut version available on request. For tubes of wall thickness 1.5-2.0 mm.

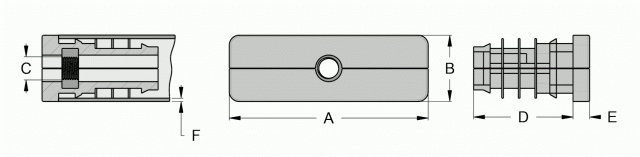

Dimension A:30
Dimension B:20
Dimension C:M 8
Dimension D:34
Dimension E:5
Dimension F:1.5
Color:black
Material:PA-6
Price from 1 pcs: € 0,792 (€ 0,958 Including VAT)
Price from 10 pcs: € 0,582 (€ 0,704 Including VAT)
Price from 50 pcs: € 0,504 (€ 0,610 Including VAT)
Price from 100 pcs: € 0,447 (€ 0,541 Including VAT)
Item number: 562 3208 114 01
In stock: 60 pcs
Dimension A:40
Dimension B:20
Dimension C:M 8
Dimension D:35
Dimension E:5
Dimension F:1.5-2.0
Color:black
Material:PA-6
Price from 1 pcs: € 0,939 (€ 1,136 Including VAT)
Price from 10 pcs: € 0,691 (€ 0,836 Including VAT)
Price from 50 pcs: € 0,598 (€ 0,724 Including VAT)
Price from 100 pcs: € 0,530 (€ 0,641 Including VAT)
Item number: 562 4208 114 01
In stock: 150 pcs
Dimension A:50
Dimension B:30
Dimension C:M10
Dimension D:34
Dimension E:5
Dimension F:1.5-2.0
Color:black
Material:PA-6
Price from 1 pcs: € 1,509 (€ 1,826 Including VAT)
Price from 10 pcs: € 1,106 (€ 1,338 Including VAT)
Price from 50 pcs: € 0,958 (€ 1,159 Including VAT)
Price from 100 pcs: € 0,892 (€ 1,079 Including VAT)
Item number: 562 5310 114 01
In stock: 190 pcs
Dimension A:60
Dimension B:20
Dimension C:M 8
Dimension D:34
Dimension E:5
Dimension F:1.5-2.0
Color:black
Material:PA-6
Price from 1 pcs: € 1,630 (€ 1,972 Including VAT)
Price from 10 pcs: € 1,195 (€ 1,446 Including VAT)
Price from 50 pcs: € 1,036 (€ 1,254 Including VAT)
Price from 100 pcs: € 0,964 (€ 1,166 Including VAT)
Item number: 562 6208 114 01
In stock: 400 pcs
Length dimensions are given in mm.
Offered discounts
Discounts are provided on orders from the total value of the ordered goods:
| For order from total value from | € 100,000 | Discount 5 % |
| For order from total value from | € 200,000 | Discount 10 % |
| For order from total value from | € 300,000 | Discount 15 % |
| For order from total value from | € 400,000 | Discount 20 % |
| For order from total value from | € 600,000 | Discount 25 % |
| For order from total value from | € 800,000 | Discount 30 % |
Discount on orders sent from the e-shop 3 %.
