Spur gears - modul 1 (104-10)

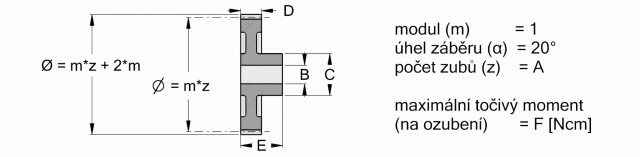

Spur gears in module 1 with straight gearing and angle of engagement 20°. Manufactured by injection molding from polyoxymethylene (acetal). They have high hardness, abrasion resistance and low coefficient of friction. They can be used at temperatures from -40°C to 140°C and can also be used under water. The torques given in the dimension table (F) apply exclusively to the gearing, no other parameters are taken into account. The load capacity of the gear also depends on other factors, so these values are only indicative and represent reference values to facilitate selection.
Dimension A:12
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:16.96
Color:natural
Material:POM
Price from 1 pcs: € 1,641 (€ 1,986 Including VAT)
Price from 10 pcs: € 1,280 (€ 1,549 Including VAT)
Price from 50 pcs: € 1,190 (€ 1,440 Including VAT)
Item number: 104 1012 000 05
In stock: 16 pcs
Dimension A:13
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:18.38
Color:natural
Material:POM
Price from 1 pcs: € 1,672 (€ 2,023 Including VAT)
Price from 10 pcs: € 1,304 (€ 1,578 Including VAT)
Price from 50 pcs: € 1,211 (€ 1,465 Including VAT)
Item number: 104 1013 000 05
In stock: 0 pcs
Dimension A:14
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:19.79
Color:natural
Material:POM
Price from 1 pcs: € 1,727 (€ 2,090 Including VAT)
Price from 10 pcs: € 1,346 (€ 1,629 Including VAT)
Price from 50 pcs: € 1,250 (€ 1,513 Including VAT)
Item number: 104 1014 000 05
In stock: 25 pcs
Dimension A:15
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:21.21
Color:natural
Material:POM
Price from 1 pcs: € 1,727 (€ 2,090 Including VAT)
Price from 10 pcs: € 1,346 (€ 1,629 Including VAT)
Price from 50 pcs: € 1,250 (€ 1,513 Including VAT)
Item number: 104 1015 000 05
In stock: 5 pcs
Dimension A:16
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:22.62
Color:natural
Material:POM
Price from 1 pcs: € 1,781 (€ 2,155 Including VAT)
Price from 10 pcs: € 1,389 (€ 1,681 Including VAT)
Price from 50 pcs: € 1,290 (€ 1,561 Including VAT)
Item number: 104 1016 000 05
In stock: 40 pcs
Dimension A:17
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:24.03
Color:natural
Material:POM
Price from 1 pcs: € 1,808 (€ 2,188 Including VAT)
Price from 10 pcs: € 1,408 (€ 1,704 Including VAT)
Price from 50 pcs: € 1,310 (€ 1,585 Including VAT)
Item number: 104 1017 000 05
In stock: 0 pcs
Dimension A:18
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:25.45
Color:natural
Material:POM
Price from 1 pcs: € 1,835 (€ 2,220 Including VAT)
Price from 10 pcs: € 1,432 (€ 1,733 Including VAT)
Price from 50 pcs: € 1,329 (€ 1,608 Including VAT)
Item number: 104 1018 000 05
In stock: 50 pcs
Dimension A:19
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:26.86
Color:natural
Material:POM
Price from 1 pcs: € 1,917 (€ 2,320 Including VAT)
Price from 10 pcs: € 1,494 (€ 1,808 Including VAT)
Price from 50 pcs: € 1,389 (€ 1,681 Including VAT)
Item number: 104 1019 000 05
In stock: 0 pcs
Dimension A:20
Dimension B:4
Dimension C:9
Dimension D:9
Dimension E:17
Dimension F:28.27
Color:natural
Material:POM
Price from 1 pcs: € 2,056 (€ 2,488 Including VAT)
Price from 10 pcs: € 1,602 (€ 1,938 Including VAT)
Price from 50 pcs: € 1,488 (€ 1,800 Including VAT)
Item number: 104 1020 000 05
In stock: 50 pcs
Dimension A:21
Dimension B:5
Dimension C:12
Dimension D:9
Dimension E:17
Dimension F:29.69
Color:natural
Material:POM
Price from 1 pcs: € 2,056 (€ 2,488 Including VAT)
Price from 10 pcs: € 1,602 (€ 1,938 Including VAT)
Price from 50 pcs: € 1,488 (€ 1,800 Including VAT)
Item number: 104 1021 000 05
In stock: 10 pcs
Dimension A:22
Dimension B:5
Dimension C:12
Dimension D:9
Dimension E:17
Dimension F:31.10
Color:natural
Material:POM
Price from 1 pcs: € 2,080 (€ 2,517 Including VAT)
Price from 10 pcs: € 1,622 (€ 1,963 Including VAT)
Price from 50 pcs: € 1,508 (€ 1,825 Including VAT)
Item number: 104 1022 000 05
In stock: 45 pcs
Dimension A:23
Dimension B:5
Dimension C:12
Dimension D:9
Dimension E:17
Dimension F:32.52
Color:natural
Material:POM
Price from 1 pcs: € 2,080 (€ 2,517 Including VAT)
Price from 10 pcs: € 1,622 (€ 1,963 Including VAT)
Price from 50 pcs: € 1,508 (€ 1,825 Including VAT)
Item number: 104 1023 000 05
In stock: 47 pcs
Dimension A:24
Dimension B:6
Dimension C:15
Dimension D:9
Dimension E:18
Dimension F:33.93
Color:natural
Material:POM
Price from 1 pcs: € 2,111 (€ 2,554 Including VAT)
Price from 10 pcs: € 1,645 (€ 1,990 Including VAT)
Price from 50 pcs: € 1,528 (€ 1,849 Including VAT)
Item number: 104 1024 000 05
In stock: 30 pcs
Dimension A:25
Dimension B:6
Dimension C:15
Dimension D:9
Dimension E:18
Dimension F:35.34
Color:natural
Material:POM
Price from 1 pcs: € 2,165 (€ 2,620 Including VAT)
Price from 10 pcs: € 1,688 (€ 2,042 Including VAT)
Price from 50 pcs: € 1,568 (€ 1,897 Including VAT)
Item number: 104 1025 000 05
In stock: 48 pcs
Dimension A:26
Dimension B:6
Dimension C:15
Dimension D:9
Dimension E:18
Dimension F:36.76
Color:natural
Material:POM
Price from 1 pcs: € 2,274 (€ 2,752 Including VAT)
Price from 10 pcs: € 1,773 (€ 2,145 Including VAT)
Price from 50 pcs: € 1,647 (€ 1,993 Including VAT)
Item number: 104 1026 000 05
In stock: 43 pcs
Dimension A:27
Dimension B:6
Dimension C:15
Dimension D:9
Dimension E:18
Dimension F:38.17
Color:natural
Material:POM
Price from 1 pcs: € 2,301 (€ 2,784 Including VAT)
Price from 10 pcs: € 1,793 (€ 2,170 Including VAT)
Price from 50 pcs: € 1,667 (€ 2,017 Including VAT)
Item number: 104 1027 000 05
In stock: 50 pcs
Dimension A:28
Dimension B:6
Dimension C:15
Dimension D:9
Dimension E:18
Dimension F:39.58
Color:natural
Material:POM
Price from 1 pcs: € 2,355 (€ 2,850 Including VAT)
Price from 10 pcs: € 1,835 (€ 2,220 Including VAT)
Price from 50 pcs: € 1,706 (€ 2,064 Including VAT)
Item number: 104 1028 000 05
In stock: 50 pcs
Dimension A:30
Dimension B:6
Dimension C:15
Dimension D:9
Dimension E:18
Dimension F:42.41
Color:natural
Material:POM
Price from 1 pcs: € 2,409 (€ 2,915 Including VAT)
Price from 10 pcs: € 1,878 (€ 2,272 Including VAT)
Price from 50 pcs: € 1,746 (€ 2,113 Including VAT)
Item number: 104 1030 000 05
In stock: 45 pcs
Dimension A:32
Dimension B:6
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:45.24
Color:natural
Material:POM
Price from 1 pcs: € 2,495 (€ 3,019 Including VAT)
Price from 10 pcs: € 1,944 (€ 2,352 Including VAT)
Price from 50 pcs: € 1,806 (€ 2,185 Including VAT)
Item number: 104 1032 000 05
In stock: 50 pcs
Dimension A:35
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:49.48
Color:natural
Material:POM
Price from 1 pcs: € 2,627 (€ 3,179 Including VAT)
Price from 10 pcs: € 2,049 (€ 2,479 Including VAT)
Price from 50 pcs: € 1,905 (€ 2,305 Including VAT)
Item number: 104 1035 000 05
In stock: 50 pcs
Dimension A:36
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:50.89
Color:natural
Material:POM
Price from 1 pcs: € 2,681 (€ 3,244 Including VAT)
Price from 10 pcs: € 2,091 (€ 2,530 Including VAT)
Price from 50 pcs: € 1,945 (€ 2,353 Including VAT)
Item number: 104 1036 000 05
In stock: 45 pcs
Dimension A:38
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:53.72
Color:natural
Material:POM
Price from 1 pcs: € 2,735 (€ 3,309 Including VAT)
Price from 10 pcs: € 2,134 (€ 2,582 Including VAT)
Price from 50 pcs: € 1,984 (€ 2,401 Including VAT)
Item number: 104 1038 000 05
In stock: 50 pcs
Dimension A:40
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:56.55
Color:natural
Material:POM
Price from 1 pcs: € 2,794 (€ 3,381 Including VAT)
Price from 10 pcs: € 2,177 (€ 2,634 Including VAT)
Price from 50 pcs: € 2,024 (€ 2,449 Including VAT)
Item number: 104 1040 000 05
In stock: 50 pcs
Dimension A:42
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:59.38
Color:natural
Material:POM
Price from 1 pcs: € 2,957 (€ 3,578 Including VAT)
Price from 10 pcs: € 2,305 (€ 2,789 Including VAT)
Price from 50 pcs: € 2,143 (€ 2,593 Including VAT)
Item number: 104 1042 000 05
In stock: 42 pcs
Dimension A:45
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:63.62
Color:natural
Material:POM
Price from 1 pcs: € 3,259 (€ 3,943 Including VAT)
Price from 10 pcs: € 2,541 (€ 3,075 Including VAT)
Price from 50 pcs: € 2,361 (€ 2,857 Including VAT)
Item number: 104 1045 000 05
In stock: 40 pcs
Dimension A:48
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:67.86
Color:natural
Material:POM
Price from 1 pcs: € 3,368 (€ 4,075 Including VAT)
Price from 10 pcs: € 2,627 (€ 3,179 Including VAT)
Price from 50 pcs: € 2,441 (€ 2,954 Including VAT)
Item number: 104 1048 000 05
In stock: 46 pcs
Dimension A:50
Dimension B:8
Dimension C:18
Dimension D:9
Dimension E:18
Dimension F:70.69
Color:natural
Material:POM
Price from 1 pcs: € 3,837 (€ 4,643 Including VAT)
Price from 10 pcs: € 2,991 (€ 3,619 Including VAT)
Price from 50 pcs: € 2,778 (€ 3,361 Including VAT)
Item number: 104 1050 000 05
In stock: 48 pcs
Dimension A:52
Dimension B:8
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:73.51
Color:natural
Material:POM
Price from 1 pcs: € 3,946 (€ 4,775 Including VAT)
Price from 10 pcs: € 3,077 (€ 3,723 Including VAT)
Price from 50 pcs: € 2,857 (€ 3,457 Including VAT)
Item number: 104 1052 000 05
In stock: 50 pcs
Dimension A:54
Dimension B:8
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:76.34
Color:natural
Material:POM
Price from 1 pcs: € 4,055 (€ 4,907 Including VAT)
Price from 10 pcs: € 3,162 (€ 3,826 Including VAT)
Price from 50 pcs: € 2,937 (€ 3,554 Including VAT)
Item number: 104 1054 000 05
In stock: 49 pcs
Dimension A:55
Dimension B:8
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:77.75
Color:natural
Material:POM
Price from 1 pcs: € 4,167 (€ 5,042 Including VAT)
Price from 10 pcs: € 3,248 (€ 3,930 Including VAT)
Price from 50 pcs: € 3,016 (€ 3,649 Including VAT)
Item number: 104 1055 000 05
In stock: 50 pcs
Dimension A:56
Dimension B:8
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:79.17
Color:natural
Material:POM
Price from 1 pcs: € 4,330 (€ 5,239 Including VAT)
Price from 10 pcs: € 3,376 (€ 4,085 Including VAT)
Price from 50 pcs: € 3,135 (€ 3,793 Including VAT)
Item number: 104 1056 000 05
In stock: 0 pcs
Dimension A:58
Dimension B:8
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:82.00
Color:natural
Material:POM
Price from 1 pcs: € 4,439 (€ 5,371 Including VAT)
Price from 10 pcs: € 3,461 (€ 4,188 Including VAT)
Price from 50 pcs: € 3,215 (€ 3,890 Including VAT)
Item number: 104 1058 000 05
In stock: 0 pcs
Dimension A:60
Dimension B:8
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:84.82
Color:natural
Material:POM
Price from 1 pcs: € 4,602 (€ 5,568 Including VAT)
Price from 10 pcs: € 3,589 (€ 4,343 Including VAT)
Price from 50 pcs: € 3,334 (€ 4,034 Including VAT)
Item number: 104 1060 000 05
In stock: 24 pcs
Dimension A:64
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:90.48
Color:natural
Material:POM
Price from 1 pcs: € 4,660 (€ 5,639 Including VAT)
Price from 10 pcs: € 3,632 (€ 4,395 Including VAT)
Price from 50 pcs: € 3,373 (€ 4,081 Including VAT)
Item number: 104 1064 000 05
In stock: 49 pcs
Dimension A:65
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:91.89
Color:natural
Material:POM
Price from 1 pcs: € 4,683 (€ 5,666 Including VAT)
Price from 10 pcs: € 3,651 (€ 4,418 Including VAT)
Price from 50 pcs: € 3,393 (€ 4,106 Including VAT)
Item number: 104 1065 000 05
In stock: 50 pcs
Dimension A:70
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:98.96
Color:natural
Material:POM
Price from 1 pcs: € 4,714 (€ 5,704 Including VAT)
Price from 10 pcs: € 3,674 (€ 4,446 Including VAT)
Price from 50 pcs: € 3,413 (€ 4,130 Including VAT)
Item number: 104 1070 000 05
In stock: 30 pcs
Dimension A:72
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:101.79
Color:natural
Material:POM
Price from 1 pcs: € 4,823 (€ 5,836 Including VAT)
Price from 10 pcs: € 3,760 (€ 4,550 Including VAT)
Price from 50 pcs: € 3,492 (€ 4,225 Including VAT)
Item number: 104 1072 000 05
In stock: 49 pcs
Dimension A:75
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:106.03
Color:natural
Material:POM
Price from 1 pcs: € 4,986 (€ 6,033 Including VAT)
Price from 10 pcs: € 3,888 (€ 4,704 Including VAT)
Price from 50 pcs: € 3,612 (€ 4,371 Including VAT)
Item number: 104 1075 000 05
In stock: 0 pcs
Dimension A:80
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:113.10
Color:natural
Material:POM
Price from 1 pcs: € 5,230 (€ 6,328 Including VAT)
Price from 10 pcs: € 4,078 (€ 4,934 Including VAT)
Price from 50 pcs: € 3,790 (€ 4,586 Including VAT)
Item number: 104 1080 000 05
In stock: 0 pcs
Dimension A:85
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:120.17
Color:natural
Material:POM
Price from 1 pcs: € 5,424 (€ 6,563 Including VAT)
Price from 10 pcs: € 4,229 (€ 5,117 Including VAT)
Price from 50 pcs: € 3,929 (€ 4,754 Including VAT)
Item number: 104 1085 000 05
In stock: 0 pcs
Dimension A:90
Dimension B:10
Dimension C:21
Dimension D:9
Dimension E:18
Dimension F:127.23
Color:natural
Material:POM
Price from 1 pcs: € 5,754 (€ 6,962 Including VAT)
Price from 10 pcs: € 4,485 (€ 5,427 Including VAT)
Price from 50 pcs: € 4,167 (€ 5,042 Including VAT)
Item number: 104 1090 000 05
In stock: 0 pcs
Dimension A:100
Dimension B:12
Dimension C:24
Dimension D:9
Dimension E:18
Dimension F:141.37
Color:natural
Material:POM
Price from 1 pcs: € 6,410 (€ 7,756 Including VAT)
Price from 10 pcs: € 4,997 (€ 6,046 Including VAT)
Price from 50 pcs: € 4,643 (€ 5,618 Including VAT)
Item number: 104 1100 000 05
In stock: 0 pcs
Dimension A:110
Dimension B:12
Dimension C:24
Dimension D:9
Dimension E:18
Dimension F:155.51
Color:natural
Material:POM
Price from 1 pcs: € 6,464 (€ 7,821 Including VAT)
Price from 10 pcs: € 5,040 (€ 6,098 Including VAT)
Price from 50 pcs: € 4,683 (€ 5,666 Including VAT)
Item number: 104 1110 000 05
In stock: 49 pcs
Dimension A:120
Dimension B:12
Dimension C:24
Dimension D:9
Dimension E:18
Dimension F:169.65
Color:natural
Material:POM
Price from 1 pcs: € 7,341 (€ 8,883 Including VAT)
Price from 10 pcs: € 5,723 (€ 6,925 Including VAT)
Price from 50 pcs: € 5,318 (€ 6,435 Including VAT)
Item number: 104 1120 000 05
In stock: 0 pcs
Dimension A:130
Dimension B:12
Dimension C:24
Dimension D:9
Dimension E:18
Dimension F:183.78
Color:natural
Material:POM
Price from 1 pcs: € 7,644 (€ 9,249 Including VAT)
Price from 10 pcs: € 5,960 (€ 7,212 Including VAT)
Price from 50 pcs: € 5,536 (€ 6,699 Including VAT)
Item number: 104 1130 000 05
In stock: 48 pcs
Dimension A:140
Dimension B:12
Dimension C:24
Dimension D:9
Dimension E:18
Dimension F:197.92
Color:natural
Material:POM
Price from 1 pcs: € 7,997 (€ 9,676 Including VAT)
Price from 10 pcs: € 6,235 (€ 7,544 Including VAT)
Price from 50 pcs: € 5,794 (€ 7,011 Including VAT)
Item number: 104 1140 000 05
In stock: 50 pcs
Length dimensions are given in mm.
Offered discounts
Discounts are provided on orders from the total value of the ordered goods:
| For order from total value from | € 100,000 | Discount 5 % |
| For order from total value from | € 200,000 | Discount 10 % |
| For order from total value from | € 300,000 | Discount 15 % |
| For order from total value from | € 400,000 | Discount 20 % |
| For order from total value from | € 600,000 | Discount 25 % |
| For order from total value from | € 800,000 | Discount 30 % |
Discount on orders sent from the e-shop 3 %.
