Spur gears - modul 1.5 (204-15)

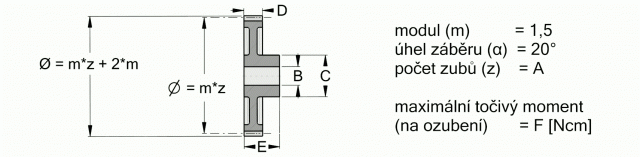

Spur gears in module 1.5 with straight gearing and angle of engagement 20°. Manufactured by injection molding from polyketone. They have high abrasion resistance, long service life and high security against tooth breakage, higher power transmission and quieter operation. They can be used at temperatures from -40 ° C to 140 ° C and can also be used under water. The torques given in the dimension table (F) apply exclusively to the gearing, no other parameters are taken into account. The load capacity of the gear also depends on other factors, so these values are only indicative and represent reference values to facilitate selection.
Dimension A:12
Dimension B:6
Dimension C:14
Dimension D:12
Dimension E:23
Dimension F:53.43
Color:light brown
Material:PK
Price from 1 pcs: € 5,250 (€ 6,353 Including VAT)
Price from 5 pcs: € 4,509 (€ 5,456 Including VAT)
Price from 25 pcs: € 2,479 (€ 3,000 Including VAT)
Price from 50 pcs: € 1,905 (€ 2,305 Including VAT)
Item number: 204 1512 704 06
In stock: 1 pcs
Dimension A:13
Dimension B:6
Dimension C:14
Dimension D:12
Dimension E:23
Dimension F:57.89
Color:light brown
Material:PK
Price from 1 pcs: € 5,393 (€ 6,526 Including VAT)
Price from 5 pcs: € 4,652 (€ 5,629 Including VAT)
Price from 25 pcs: € 2,557 (€ 3,094 Including VAT)
Price from 50 pcs: € 1,984 (€ 2,401 Including VAT)
Item number: 204 1513 704 06
In stock: 0 pcs
Dimension A:14
Dimension B:6
Dimension C:14
Dimension D:12
Dimension E:23
Dimension F:62.35
Color:light brown
Material:PK
Price from 1 pcs: € 5,735 (€ 6,939 Including VAT)
Price from 5 pcs: € 4,963 (€ 6,005 Including VAT)
Price from 25 pcs: € 2,728 (€ 3,301 Including VAT)
Price from 50 pcs: € 2,103 (€ 2,545 Including VAT)
Item number: 204 1514 704 06
In stock: 1 pcs
Dimension A:15
Dimension B:6
Dimension C:14
Dimension D:12
Dimension E:23
Dimension F:66.80
Color:light brown
Material:PK
Price from 1 pcs: € 5,882 (€ 7,117 Including VAT)
Price from 5 pcs: € 5,106 (€ 6,178 Including VAT)
Price from 25 pcs: € 2,809 (€ 3,399 Including VAT)
Price from 50 pcs: € 2,183 (€ 2,641 Including VAT)
Item number: 204 1515 704 06
In stock: 1 pcs
Dimension A:16
Dimension B:6
Dimension C:14
Dimension D:12
Dimension E:23
Dimension F:71.25
Color:light brown
Material:PK
Price from 1 pcs: € 6,006 (€ 7,267 Including VAT)
Price from 5 pcs: € 5,195 (€ 6,286 Including VAT)
Price from 25 pcs: € 2,856 (€ 3,456 Including VAT)
Price from 50 pcs: € 2,222 (€ 2,689 Including VAT)
Item number: 204 1516 704 06
In stock: 1 pcs
Dimension A:17
Dimension B:6
Dimension C:14
Dimension D:12
Dimension E:23
Dimension F:75.71
Color:light brown
Material:PK
Price from 1 pcs: € 6,258 (€ 7,572 Including VAT)
Price from 5 pcs: € 5,467 (€ 6,615 Including VAT)
Price from 25 pcs: € 3,007 (€ 3,638 Including VAT)
Price from 50 pcs: € 2,361 (€ 2,857 Including VAT)
Item number: 204 1517 704 06
In stock: 0 pcs
Dimension A:18
Dimension B:8
Dimension C:17
Dimension D:12
Dimension E:23
Dimension F:80.16
Color:light brown
Material:PK
Price from 1 pcs: € 6,421 (€ 7,769 Including VAT)
Price from 5 pcs: € 5,610 (€ 6,788 Including VAT)
Price from 25 pcs: € 3,085 (€ 3,733 Including VAT)
Price from 50 pcs: € 2,421 (€ 2,929 Including VAT)
Item number: 204 1518 704 06
In stock: 0 pcs
Dimension A:19
Dimension B:8
Dimension C:17
Dimension D:12
Dimension E:23
Dimension F:84.61
Color:light brown
Material:PK
Price from 1 pcs: € 6,604 (€ 7,991 Including VAT)
Price from 5 pcs: € 5,754 (€ 6,962 Including VAT)
Price from 25 pcs: € 3,166 (€ 3,831 Including VAT)
Price from 50 pcs: € 2,500 (€ 3,025 Including VAT)
Item number: 204 1519 704 06
In stock: 0 pcs
Dimension A:20
Dimension B:8
Dimension C:17
Dimension D:12
Dimension E:23
Dimension F:89.06
Color:light brown
Material:PK
Price from 1 pcs: € 6,693 (€ 8,099 Including VAT)
Price from 5 pcs: € 5,863 (€ 7,094 Including VAT)
Price from 25 pcs: € 3,224 (€ 3,901 Including VAT)
Price from 50 pcs: € 2,540 (€ 3,073 Including VAT)
Item number: 204 1520 704 06
In stock: 0 pcs
Dimension A:21
Dimension B:8
Dimension C:17
Dimension D:12
Dimension E:23
Dimension F:93.51
Color:light brown
Material:PK
Price from 1 pcs: € 6,910 (€ 8,361 Including VAT)
Price from 5 pcs: € 6,061 (€ 7,334 Including VAT)
Price from 25 pcs: € 3,333 (€ 4,033 Including VAT)
Price from 50 pcs: € 2,639 (€ 3,193 Including VAT)
Item number: 204 1521 704 06
In stock: 1 pcs
Dimension A:22
Dimension B:8
Dimension C:17
Dimension D:12
Dimension E:23
Dimension F:97.98
Color:light brown
Material:PK
Price from 1 pcs: € 7,069 (€ 8,553 Including VAT)
Price from 5 pcs: € 6,224 (€ 7,531 Including VAT)
Price from 25 pcs: € 3,422 (€ 4,141 Including VAT)
Price from 50 pcs: € 2,718 (€ 3,289 Including VAT)
Item number: 204 1522 704 06
In stock: 0 pcs
Dimension A:23
Dimension B:8
Dimension C:17
Dimension D:12
Dimension E:23
Dimension F:102.43
Color:light brown
Material:PK
Price from 1 pcs: € 7,287 (€ 8,817 Including VAT)
Price from 5 pcs: € 6,402 (€ 7,746 Including VAT)
Price from 25 pcs: € 3,523 (€ 4,263 Including VAT)
Price from 50 pcs: € 2,818 (€ 3,410 Including VAT)
Item number: 204 1523 704 06
In stock: 0 pcs
Dimension A:24
Dimension B:8
Dimension C:19
Dimension D:12
Dimension E:23
Dimension F:106.88
Color:light brown
Material:PK
Price from 1 pcs: € 7,558 (€ 9,145 Including VAT)
Price from 5 pcs: € 6,674 (€ 8,076 Including VAT)
Price from 25 pcs: € 3,670 (€ 4,441 Including VAT)
Price from 50 pcs: € 2,917 (€ 3,530 Including VAT)
Item number: 204 1524 704 06
In stock: 0 pcs
Dimension A:25
Dimension B:8
Dimension C:19
Dimension D:12
Dimension E:23
Dimension F:111.33
Color:light brown
Material:PK
Price from 1 pcs: € 8,532 (€ 10,324 Including VAT)
Price from 5 pcs: € 7,578 (€ 9,169 Including VAT)
Price from 25 pcs: € 4,167 (€ 5,042 Including VAT)
Price from 50 pcs: € 3,353 (€ 4,057 Including VAT)
Item number: 204 1525 704 06
In stock: 0 pcs
Dimension A:26
Dimension B:8
Dimension C:19
Dimension D:12
Dimension E:23
Dimension F:115.78
Color:light brown
Material:PK
Price from 1 pcs: € 8,765 (€ 10,606 Including VAT)
Price from 5 pcs: € 7,776 (€ 9,409 Including VAT)
Price from 25 pcs: € 4,276 (€ 5,174 Including VAT)
Price from 50 pcs: € 3,433 (€ 4,154 Including VAT)
Item number: 204 1526 704 06
In stock: 0 pcs
Dimension A:27
Dimension B:8
Dimension C:19
Dimension D:12
Dimension E:23
Dimension F:120.24
Color:light brown
Material:PK
Price from 1 pcs: € 8,874 (€ 10,738 Including VAT)
Price from 5 pcs: € 7,884 (€ 9,540 Including VAT)
Price from 25 pcs: € 4,338 (€ 5,249 Including VAT)
Price from 50 pcs: € 3,492 (€ 4,225 Including VAT)
Item number: 204 1527 704 06
In stock: 0 pcs
Dimension A:28
Dimension B:8
Dimension C:19
Dimension D:12
Dimension E:23
Dimension F:124.69
Color:light brown
Material:PK
Price from 1 pcs: € 9,075 (€ 10,981 Including VAT)
Price from 5 pcs: € 8,082 (€ 9,779 Including VAT)
Price from 25 pcs: € 4,446 (€ 5,380 Including VAT)
Price from 50 pcs: € 3,591 (€ 4,345 Including VAT)
Item number: 204 1528 704 06
In stock: 0 pcs
Dimension A:30
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:133.59
Color:light brown
Material:PK
Price from 1 pcs: € 9,180 (€ 11,108 Including VAT)
Price from 5 pcs: € 8,191 (€ 9,911 Including VAT)
Price from 25 pcs: € 4,505 (€ 5,451 Including VAT)
Price from 50 pcs: € 3,631 (€ 4,394 Including VAT)
Item number: 204 1530 704 06
In stock: 0 pcs
Dimension A:32
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:142.51
Color:light brown
Material:PK
Price from 1 pcs: € 9,525 (€ 11,525 Including VAT)
Price from 5 pcs: € 8,497 (€ 10,281 Including VAT)
Price from 25 pcs: € 4,675 (€ 5,657 Including VAT)
Price from 50 pcs: € 3,770 (€ 4,562 Including VAT)
Item number: 204 1532 704 06
In stock: 0 pcs
Dimension A:35
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:155.86
Color:light brown
Material:PK
Price from 1 pcs: € 10,049 (€ 12,159 Including VAT)
Price from 5 pcs: € 8,982 (€ 10,868 Including VAT)
Price from 25 pcs: € 4,939 (€ 5,976 Including VAT)
Price from 50 pcs: € 4,028 (€ 4,874 Including VAT)
Item number: 204 1535 704 06
In stock: 0 pcs
Dimension A:36
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:160.31
Color:light brown
Material:PK
Price from 1 pcs: € 10,282 (€ 12,441 Including VAT)
Price from 5 pcs: € 9,180 (€ 11,108 Including VAT)
Price from 25 pcs: € 5,048 (€ 6,108 Including VAT)
Price from 50 pcs: € 4,107 (€ 4,969 Including VAT)
Item number: 204 1536 704 06
In stock: 0 pcs
Dimension A:38
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:169.22
Color:light brown
Material:PK
Price from 1 pcs: € 10,806 (€ 13,075 Including VAT)
Price from 5 pcs: € 9,704 (€ 11,742 Including VAT)
Price from 25 pcs: € 5,339 (€ 6,460 Including VAT)
Price from 50 pcs: € 4,346 (€ 5,259 Including VAT)
Item number: 204 1538 704 06
In stock: 0 pcs
Dimension A:40
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:178.13
Color:light brown
Material:PK
Price from 1 pcs: € 11,345 (€ 13,727 Including VAT)
Price from 5 pcs: € 10,208 (€ 12,352 Including VAT)
Price from 25 pcs: € 5,614 (€ 6,793 Including VAT)
Price from 50 pcs: € 4,584 (€ 5,547 Including VAT)
Item number: 204 1540 704 06
In stock: 0 pcs
Dimension A:42
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:187.04
Color:light brown
Material:PK
Price from 1 pcs: € 11,527 (€ 13,948 Including VAT)
Price from 5 pcs: € 10,356 (€ 12,531 Including VAT)
Price from 25 pcs: € 5,696 (€ 6,892 Including VAT)
Price from 50 pcs: € 4,643 (€ 5,618 Including VAT)
Item number: 204 1542 704 06
In stock: 0 pcs
Dimension A:45
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:200.39
Color:light brown
Material:PK
Price from 1 pcs: € 11,725 (€ 14,187 Including VAT)
Price from 5 pcs: € 10,554 (€ 12,770 Including VAT)
Price from 25 pcs: € 5,804 (€ 7,023 Including VAT)
Price from 50 pcs: € 4,743 (€ 5,739 Including VAT)
Item number: 204 1545 704 06
In stock: 0 pcs
Dimension A:48
Dimension B:10
Dimension C:24
Dimension D:12
Dimension E:23
Dimension F:213.76
Color:light brown
Material:PK
Price from 1 pcs: € 11,943 (€ 14,451 Including VAT)
Price from 5 pcs: € 10,771 (€ 13,033 Including VAT)
Price from 25 pcs: € 5,925 (€ 7,169 Including VAT)
Price from 50 pcs: € 4,861 (€ 5,882 Including VAT)
Item number: 204 1548 704 06
In stock: 0 pcs
Dimension A:50
Dimension B:12
Dimension C:27
Dimension D:12
Dimension E:23
Dimension F:222.66
Color:light brown
Material:PK
Price from 1 pcs: € 12,106 (€ 14,648 Including VAT)
Price from 5 pcs: € 10,914 (€ 13,206 Including VAT)
Price from 25 pcs: € 6,002 (€ 7,262 Including VAT)
Price from 50 pcs: € 4,921 (€ 5,954 Including VAT)
Item number: 204 1550 704 06
In stock: 0 pcs
Dimension A:52
Dimension B:12
Dimension C:27
Dimension D:12
Dimension E:23
Dimension F:231.57
Color:light brown
Material:PK
Price from 1 pcs: € 12,319 (€ 14,906 Including VAT)
Price from 5 pcs: € 11,112 (€ 13,446 Including VAT)
Price from 25 pcs: € 6,111 (€ 7,394 Including VAT)
Price from 50 pcs: € 5,020 (€ 6,074 Including VAT)
Item number: 204 1552 704 06
In stock: 0 pcs
Dimension A:54
Dimension B:12
Dimension C:27
Dimension D:12
Dimension E:23
Dimension F:240.47
Color:light brown
Material:PK
Price from 1 pcs: € 12,699 (€ 15,366 Including VAT)
Price from 5 pcs: € 11,454 (€ 13,859 Including VAT)
Price from 25 pcs: € 6,301 (€ 7,624 Including VAT)
Price from 50 pcs: € 5,179 (€ 6,267 Including VAT)
Item number: 204 1554 704 06
In stock: 0 pcs
Dimension A:55
Dimension B:12
Dimension C:27
Dimension D:12
Dimension E:23
Dimension F:244.92
Color:light brown
Material:PK
Price from 1 pcs: € 13,079 (€ 15,826 Including VAT)
Price from 5 pcs: € 11,815 (€ 14,296 Including VAT)
Price from 25 pcs: € 6,499 (€ 7,864 Including VAT)
Price from 50 pcs: € 5,358 (€ 6,483 Including VAT)
Item number: 204 1555 704 06
In stock: 0 pcs
Dimension A:60
Dimension B:12
Dimension C:27
Dimension D:12
Dimension E:23
Dimension F:267.19
Color:light brown
Material:PK
Price from 1 pcs: € 13,530 (€ 16,371 Including VAT)
Price from 5 pcs: € 12,210 (€ 14,774 Including VAT)
Price from 25 pcs: € 6,716 (€ 8,126 Including VAT)
Price from 50 pcs: € 5,536 (€ 6,699 Including VAT)
Item number: 204 1560 704 06
In stock: 0 pcs
Dimension A:70
Dimension B:14
Dimension C:30
Dimension D:12
Dimension E:23
Dimension F:311.72
Color:light brown
Material:PK
Price from 1 pcs: € 13,836 (€ 16,742 Including VAT)
Price from 5 pcs: € 12,521 (€ 15,150 Including VAT)
Price from 25 pcs: € 6,887 (€ 8,333 Including VAT)
Price from 50 pcs: € 5,675 (€ 6,867 Including VAT)
Item number: 204 1570 704 06
In stock: 0 pcs
Dimension A:80
Dimension B:14
Dimension C:30
Dimension D:12
Dimension E:23
Dimension F:356.25
Color:light brown
Material:PK
Price from 1 pcs: € 14,375 (€ 17,394 Including VAT)
Price from 5 pcs: € 13,041 (€ 15,780 Including VAT)
Price from 25 pcs: € 7,174 (€ 8,681 Including VAT)
Price from 50 pcs: € 5,913 (€ 7,155 Including VAT)
Item number: 204 1580 704 06
In stock: 0 pcs
Dimension A:90
Dimension B:14
Dimension C:30
Dimension D:12
Dimension E:23
Dimension F:400.79
Color:light brown
Material:PK
Price from 1 pcs: € 14,864 (€ 17,985 Including VAT)
Price from 5 pcs: € 13,495 (€ 16,329 Including VAT)
Price from 25 pcs: € 7,422 (€ 8,981 Including VAT)
Price from 50 pcs: € 6,131 (€ 7,419 Including VAT)
Item number: 204 1590 704 06
In stock: 1 pcs
Dimension A:100
Dimension B:20
Dimension C:40
Dimension D:19
Dimension E:34
Dimension F:705.10
Color:light brown
Material:PK
Price from 1 pcs: € 69,359 (€ 83,924 Including VAT)
Price from 5 pcs: € 30,042 (€ 36,351 Including VAT)
Item number: 204 1600 704 06
In stock: 0 pcs
Dimension A:110
Dimension B:20
Dimension C:40
Dimension D:19
Dimension E:34
Dimension F:775.60
Color:light brown
Material:PK
Price from 1 pcs: € 73,254 (€ 88,637 Including VAT)
Price from 5 pcs: € 31,748 (€ 38,415 Including VAT)
Item number: 204 1610 704 06
In stock: 0 pcs
Dimension A:120
Dimension B:20
Dimension C:40
Dimension D:19
Dimension E:34
Dimension F:846.11
Color:light brown
Material:PK
Price from 1 pcs: € 77,224 (€ 93,441 Including VAT)
Price from 5 pcs: € 33,474 (€ 40,504 Including VAT)
Item number: 204 1620 704 06
In stock: 0 pcs
Dimension A:130
Dimension B:20
Dimension C:40
Dimension D:19
Dimension E:34
Dimension F:916.62
Color:light brown
Material:PK
Price from 1 pcs: € 81,119 (€ 98,154 Including VAT)
Price from 5 pcs: € 35,181 (€ 42,569 Including VAT)
Item number: 204 1630 704 06
In stock: 0 pcs
Dimension A:140
Dimension B:20
Dimension C:40
Dimension D:19
Dimension E:34
Dimension F:987.13
Color:light brown
Material:PK
Price from 1 pcs: € 85,015 (€ 102,868 Including VAT)
Price from 5 pcs: € 36,927 (€ 44,682 Including VAT)
Item number: 204 1640 704 06
In stock: 0 pcs
Dimension A:150
Dimension B:20
Dimension C:40
Dimension D:19
Dimension E:34
Dimension F:1057.63
Color:light brown
Material:PK
Price from 1 pcs: € 88,914 (€ 107,586 Including VAT)
Price from 5 pcs: € 38,634 (€ 46,747 Including VAT)
Item number: 204 1650 704 06
In stock: 0 pcs
Length dimensions are given in mm.
Offered discounts
Discounts are provided on orders from the total value of the ordered goods:
| For order from total value from | € 100,000 | Discount 5 % |
| For order from total value from | € 200,000 | Discount 10 % |
| For order from total value from | € 300,000 | Discount 15 % |
| For order from total value from | € 400,000 | Discount 20 % |
| For order from total value from | € 600,000 | Discount 25 % |
| For order from total value from | € 800,000 | Discount 30 % |
Discount on orders sent from the e-shop 3 %.
